VERTICAL TOGGLE CLAMP - VERTICAL HEAVY DUTY ANGLE BASE & SOLID BASE

This series is designed for a maximum opening to simplify jig loading and for most rugged production jobs this has a deeper throat depth and more height under the clamping bar, clamp runs with specially designed pre-lubricated bushes for the long life cycle. Silicon rubber grip having large grip surface with oil & heat resistance.

  • Material - Steel

  • Surface Finish - Electro Zinc-Plated

  • Hand Grip - Silicon Rubber

  • Clamping Bolt - 8.8 Grade moulded with NBR

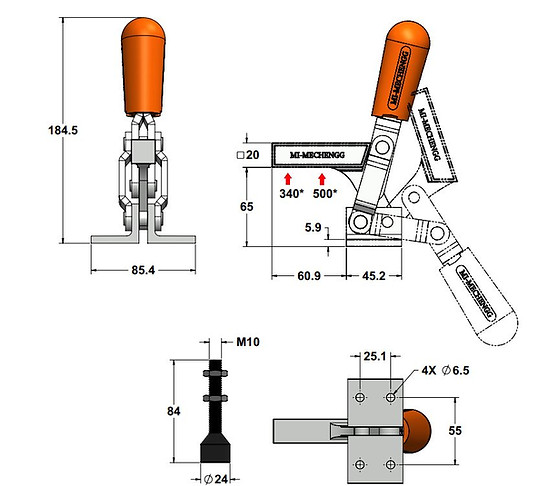

MI-VHD-500-AB


Weight: 1.110 Kgs

Arm opens - 79 degree

Handle moves - 136 degree

VIDEO

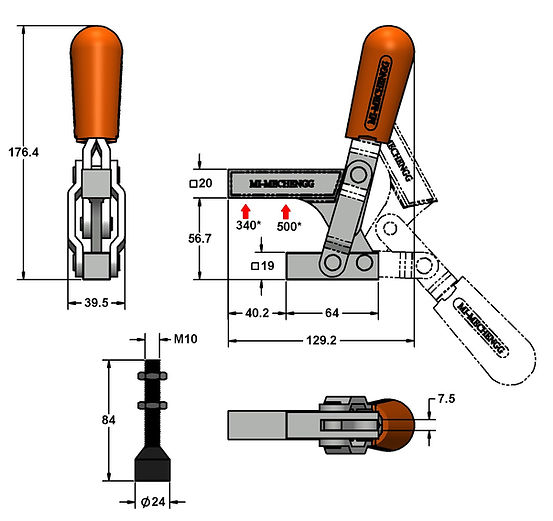

MI-VHD-500-SB


Weight: 0.985 Kgs

Arm opens - 79 degree

Handle moves - 136 degree

VIDEO
