PUSH PULL TOGGLE CLAMPS - COMPACT PUSH-PULL STRAIGHT BASE SERIES

This series is designed for mounting both horizontal and vertical side, As the mounting area is straight these clamps allow users to save the precious work surface for other uses. Clamp runs with specially designed pre-lubricated bushes for the long life cycle. Silicon rubber grip having large grip surface with oil and heat resistance.

  • Material - Steel

  • Surface Finish - Electro Zinc-Plated

  • Hand Grip - Silicon Rubber

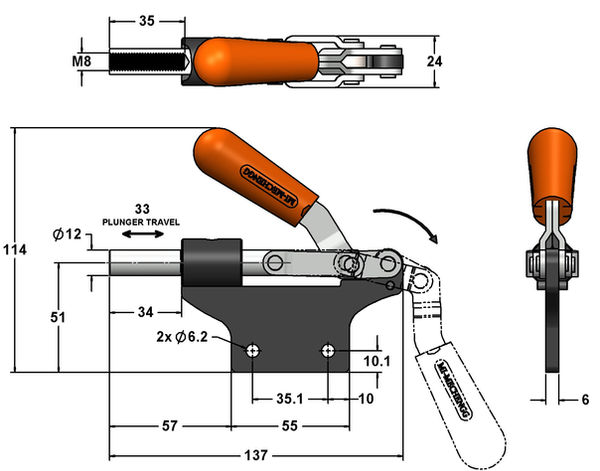

MI-CPSB-300


Weight: 0.385 Kgs

Holding Capacity - 300 Kg

VIDEO

MI-CPSB-400


Weight: 0.680 Kgs

Holding Capacity - 400 Kg

VIDEO

MI-CPSB-700


Weight: 0.700 Kgs

Holding Capacity - 1.500 Kg

VIDEO
