PUSH PULL TOGGLE CLAMPS - HEAVY DUTY  FLANGE BASE MOUNT WITH ROUND BAR

This model offers an excellent holding capacity. This low profile fast-acting clamp comes with the plunger ground and oiled for precise fit and smoothness in movements and has a tapped hole. Silicon orange rubber grip having a large grip surface with oil and heat resistance. This can be mounted through bolts on the working table.

  • Material - Steel

  • Surface Finish - Electro Zinc-Plated

  • Hand Grip - Silicon Rubber

MI-HDPF-350-RB


Weight: 0.415 Kgs

Holding Capacity - 3500 N

VIDEO

MI-HDPF-1150-RB


Weight: 0.885 Kgs

Holding Capacity - 11500 N

VIDEO

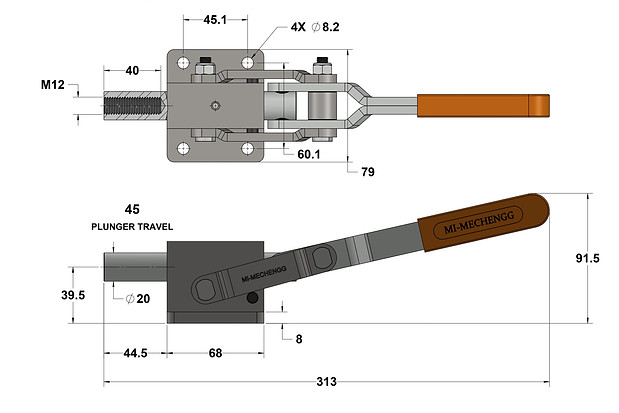

MI-HDPF-2650-RB


Weight: 1.820 Kgs

Holding Capacity - 26500 N

VIDEO

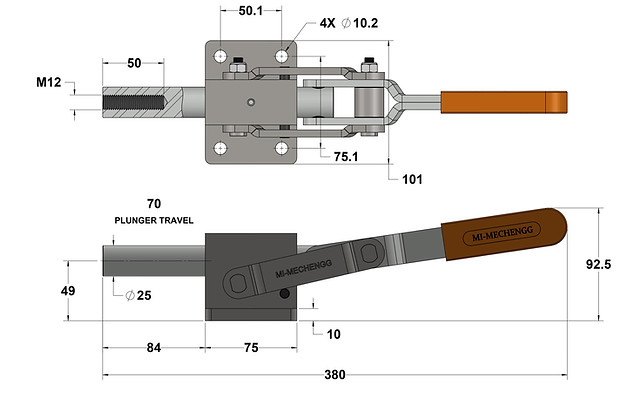

MI-HDPF-4550-RB


Weight: 3.280 Kgs

Holding Capacity - 45500 N

VIDEO
